Configure OneLogin as SAML or OAuth IDP for SSO

---

miniOrange Identity Broker service solution enables cross protocol authentication. You can configure OneLogin as an IDP for Single Sign-On (SSO) into your applications/websites. Here, OneLogin will act as an Identity Provider (IDP) and miniOrange will act as a broker.

We offer a pre-built solution for integrating with OneLogin, making it easier and quick to implement. Our team can also help you set up OneLogin as SAML or OIDC IDP to login into your applications.

Follow the Step-by-Step Guide given below for OneLogin Single Sign-On (SSO)

1. Configure miniOrange as SP in OneLogin

Mentioned below are steps to configure OneLogin as IDP via SAML and OAuth configuration. Follow the steps accordingly based on your requirement (SAML or OAuth).

• SAML
• OAuth

• Go to miniOrange Admin console and navigate to Idenity Providers in the left navigation menu. Then, click on Add Identity Provider button.



• Now click on the Click here link to get miniOrange metadata as shown in Screen below.



• For SP -INITIATED SSO section Select Show Metadata Details.



• Click on Download Metadata



• Log in to OneLogin.

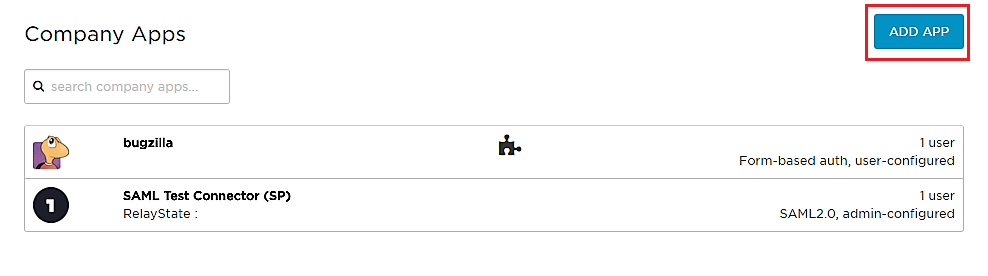

• Go to Apps >> Company Apps >> Add Apps from the Navbar.

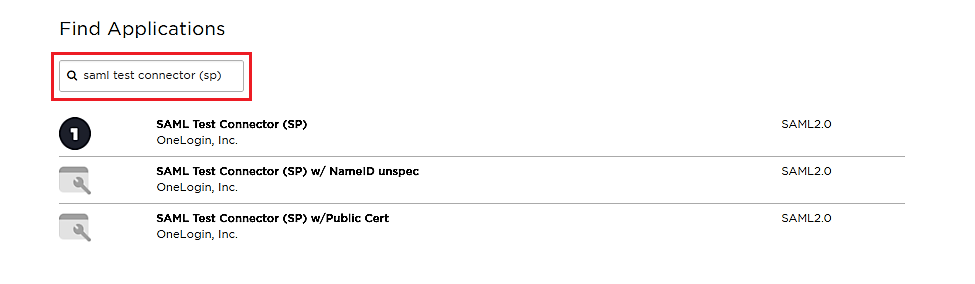

• In the search box, type SAML Test Connector and click on the App to add it.


• Enter the display name and click on Save.

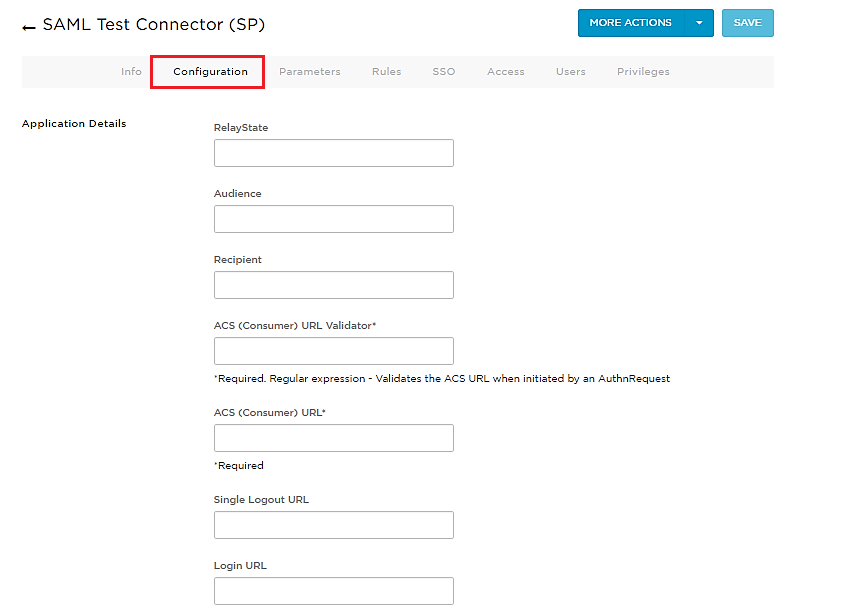

• Click on the Configuration Tab and enter the following.

• Go to https://app.onelogin.com/login and log into your Onelogin account.

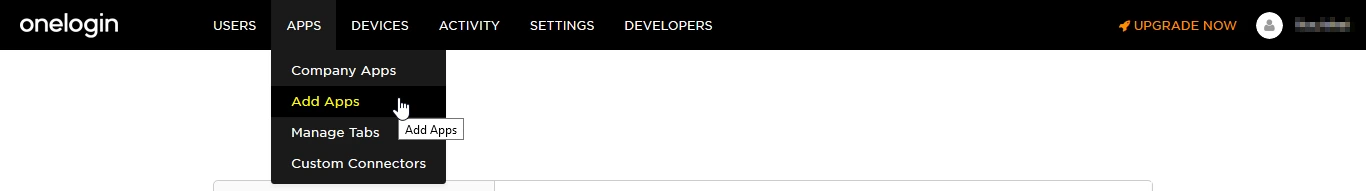

• You will be presented with following screen. Hover on Apps and then click on Add Apps.

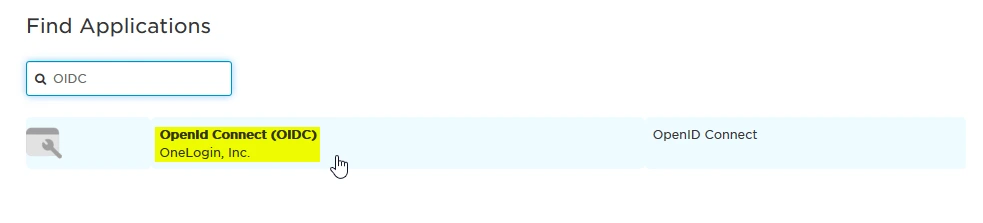

• You will be shown a search list. Search for “OIDC” (OpenID Connect) and click on the search result as shown below.

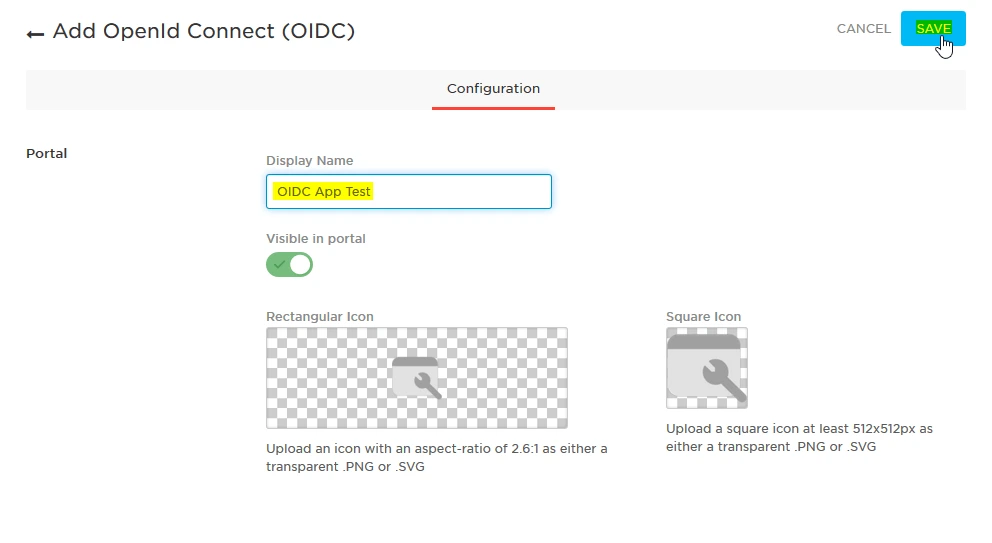

• You will be shown a configuration screen. Fill the application name and other details as required then click on Save.



• To get the Redirect URL:
• Go to miniOrange Admin Console.
• From the left navigation bar select Identity Provider. Select Oauth





• Copy the Callback URL as Redirect URL required for next step.

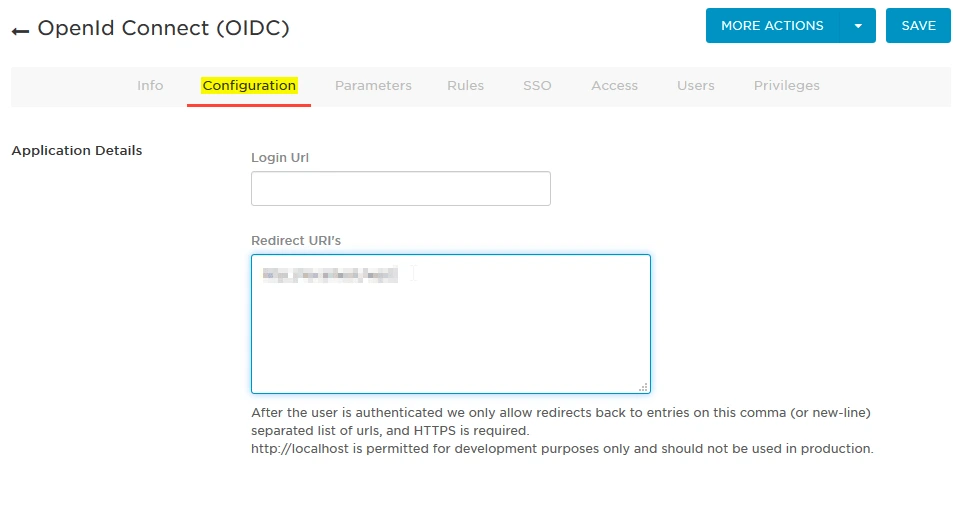

• Back in OneLogin, you will be redirected to the app details page. Go to Configuration tab and enter Redirect URL from MO OAuth identity-provider page and click on Save.

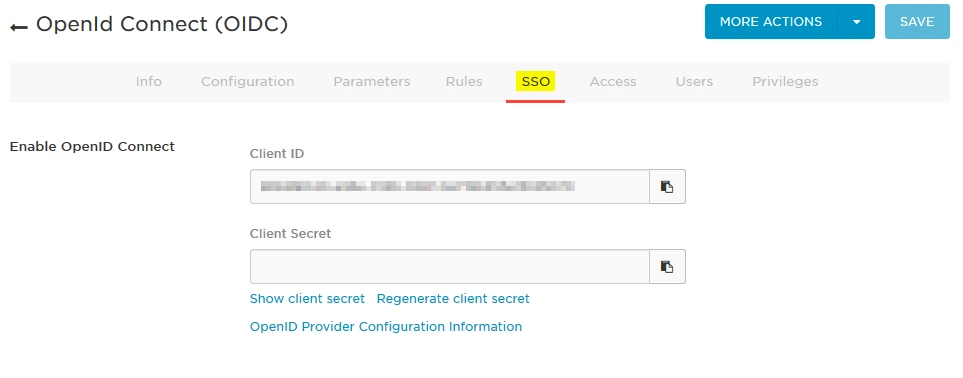

• Go to SSO tab. There you will find the Client ID and Client Secret fields.



• Copy these credentials in MO OAuth App configuration page on corresponding fields.
• Make sure that you configure the Authorize Endpoint and ID Token Endpoint in the MO OAuth App correctly.

2. Configure OneLogin as IDP in miniOrange

• SAML
• OAuth

• Go to miniOrange Admin Console .
• From the left navigation bar select Identity Provider.
• Click on Add Identity Provider button.



• Select SAML. Click on Import IDP metadata.



• Choose an appropriate IDP name. Enter the URL which you have saved in the previous step from OneLogin.
• Click on Import.



• As shown in the below screen the IDP Entity ID, SAML SSO Login URL and x.509 Certificate will be filled from the Metadata file we just imported.



• Click Save

Follow the steps to configure OneLogin as IdP by OAuth configuration.

• Go to miniOrange Admin Console.
• From the left navigation bar select Identity Provider. Select Oauth





• Enter the following values.

IdP Name	Custom Provider
IdP Display Name	Choose appropriate Name
OAuth Authorize Endpoint	https://{your-base-url}/as/authorization.oauth2
OAuth Access Token Endpoint	https://{your-base-url}/as/token.oauth2
OAuth Get User Info Endpoint (optional)	https://{your-base-url}/idp/userinfo.oauth2
Client ID	From step 1
Client secret	From step 1
Scope	auto

3. Test Connection

• Visit your Login Page URL.
• Go to Identity Providers tab.
• Click on Select >> Test Connection option against the Identity Provider (IDP) you configured.



• On entering valid OneLogin credentials (credentials of user assigned to app created in OneLogin), you will see a pop-up window which is shown in the below screen.



• Hence your configuration of OneLogin as IDP in miniOrange is successfully completed.

Configure Attribute Mapping

• Go to Identity Providers >> View Identity Providers >> Your configured OneLogin as IdP.
• Now click on Select and then Configure Attribute Mapping of your application.



• Under Attribute Type - EXTERNAL for the external attributes that need to be transformed and sent to applications or service providers.
• Click on the + Add Attribute button to add the attribute fields.



• Check attributes in test connection window from last step. Enter the attribute names (any name) that you want to send to your application under Attribute Name sent to SP.
• Enter the value of attributes that are coming from IdP into the Attribute Name from IdP field on the Xecurify side.

Setup Multiple IDPs (Optional)

• You can configure multiple IDPs (Identity Providers) and give users the option to select the IDP of their choice to authenticate with.
  For Example - It could be multiple AD domains belonging to different departments or multiple okta organizations.

Few usecases where customers configure multiple IDPs -


• Suppose you have a product which many of your clients use and each client has their own unique IDP so you want them to SSO into your product as well using their existing IDP only. miniOrange provides a centralized way to connect with all IDPs in a very easy manner and integrate SSO into your application.
• Suppose you are providing a course to many universities, each having a unique SAML, OAuth protocol supported IDP's like Shibboleth, ADFS, CAS, etc. You can provide Single Sign-On (SSO) into your course application to all these universities by integrating with all of them using a single platform provided by miniOrange.
• This is the endpoint to call from your SAML application -

For Cloud IDP -	https://login.xecurify.com/moas/discovery?customerId=<customer_id>
For On-Premise IDP -	https://yourdomain.com/discovery?customerId=<customer_id>



• You should copy the Customer Key from admin console-> Settings -> and replace it with <customer_id> here. Once configured in SP, when you initiate the login from Service Provider, a user will be redirected to IDP Selection Page listing all IDPs configured for that account.

You can see the screenshot below of the IDP Selection Page with a list of IDPs.




Note: To view the IDP in drop-down list, go to Identity Providers tab > against your configured IDP > Select >Edit , here Enable the Show IdP to Users option.




• You can also change the look and feel of this page. Login to miniOrange Admin console. Navigate to Customization -> Branding Configuration. See the below screenshot for reference-




• You can customize the title of this page.
• Change the logo and favicon for this page.
• Change the background and button color for this page from admin UI.
