EBS ADFS SSO is a way of implementing Single Sign On functionalities into Oracle E-Business Suite by authenticating users against Microsoft Active Directory Federation Services using miniOrange.

"miniOrange SSO connector enables the Single Sign-On (SSO) between Oracle EBS and ADFS without the need to purchase and install Oracle Access Manager (OAM) and Oracle Internet Directory (OID) license."

Oracle EBS ADFS SSO integration is enabled with the help of miniOrange's Oracle EBS SSO Connector. This integration involves registering Microsoft Active Directory Federated Services – ADFS Services as a SAML Identity Provider (IdP) in the miniOrange connector. The authentication flow works like this: when a user tries to login into EBS, the authentication is delegated to miniOrange, which redirects the user to ADFS for Single Sign-On Login. Upon successful authentication, the user is granted access to Oracle EBS. Oracle EBS can also be protected with ADFS Multi-Factor Authentication. Oracle EBS URL can be added to ADFS Applications Dashboard by ADFS Admin, and users can launch it like any other ADFS Application. miniOrange SSO connector can enable ADFS SSO for the following supported Oracle EBS versions - R12 and R12.2 and it can also enable Oracle EBS integrations such as OBIEE, Hyperion/EPM Suite, ADF Applications, WebCenter and Agile. miniOrange SSO Connector can also enable Microsoft ADFS SSO for other Oracle Products as well such as Peoplesoft, Siebel and JD Edwards.

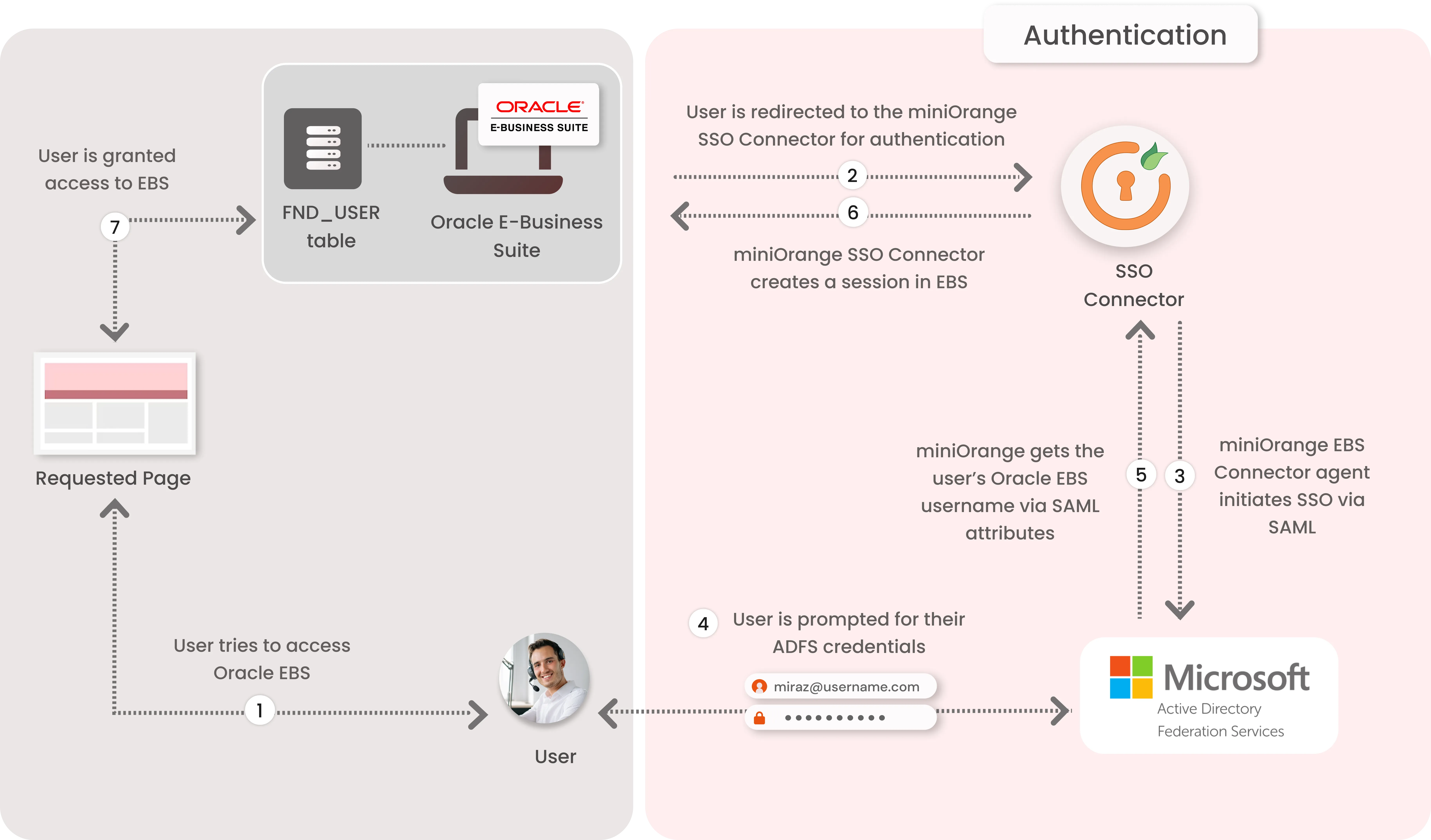

EBS ADFS SSO Authentication flow using miniOrange's Oracle SSO Solution :

1. The User sends the request to access the Oracle E-Business Suite.

2. Oracle EBS redirects the request to the miniOrange SSO Connector for authentication.

3. The miniOrange SSO Connector redirects the user to ADFS for authentication.

4. The user is prompted for their ADFS credentials, and is authenticated upon a successful response.

5. The connector receives the user’s Oracle EBS registered username/email from ADFS via SAML attributes.

6. The connector checks the value of the username/email received from ADFS against the FND_USER table in the Oracle EBS Database & creates a session for them.

7. Upon successfully creating a session, user is redirected to the Oracle E-Business Suite portal as logged-in user

Follow the step-by-step Guide given below for Oracle E-Business Single Sign-On (SSO) with ADFS

1. Configure miniOrange Broker Agent as a SAML Service Provider in ADFS

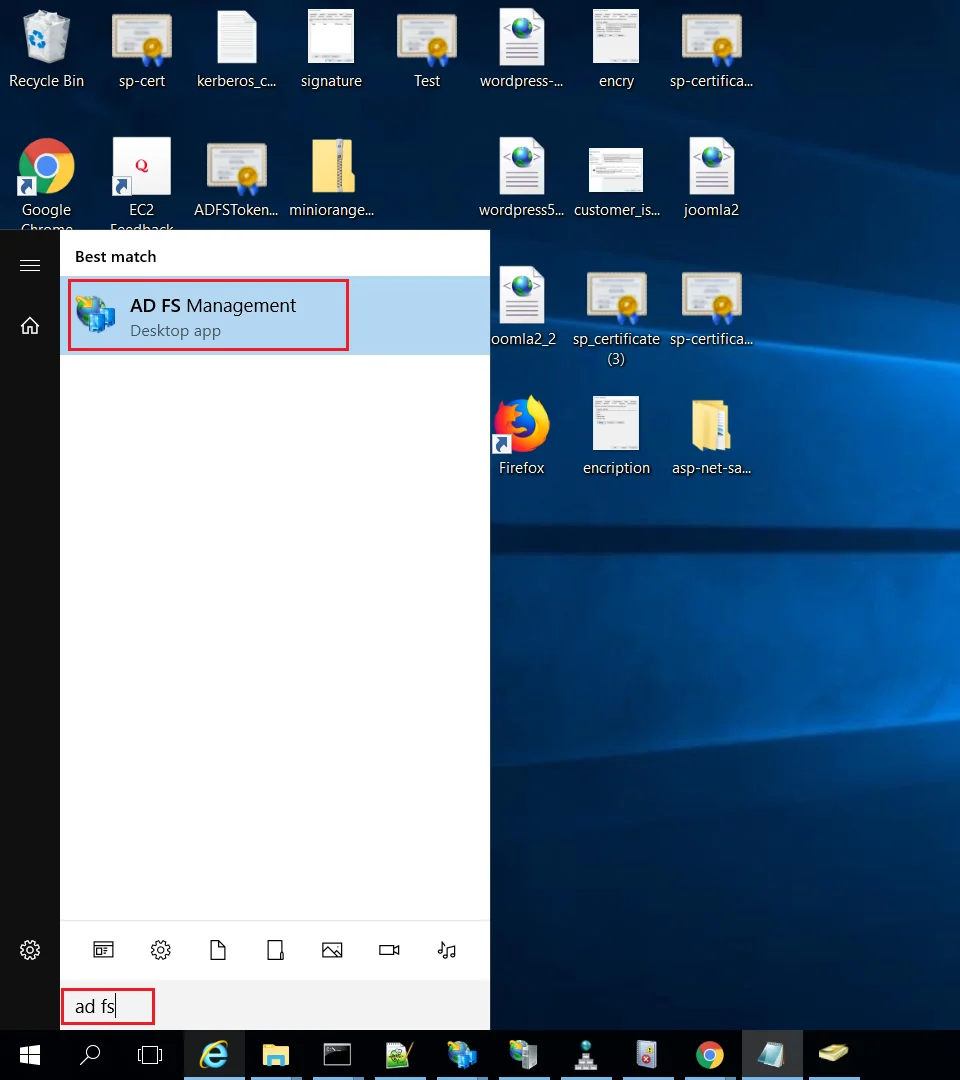

• On ADFS, search for ADFS Management application.

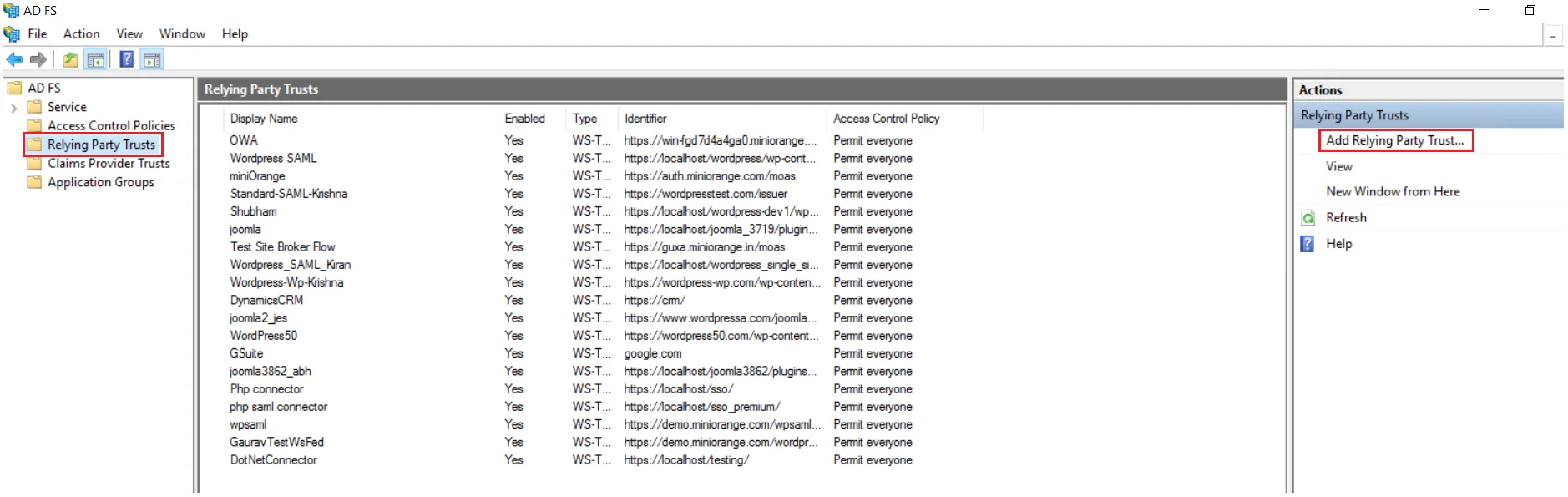

• After opening the AD FS Management, select Relying Party Trust & then click on Add Relying Party Trust.

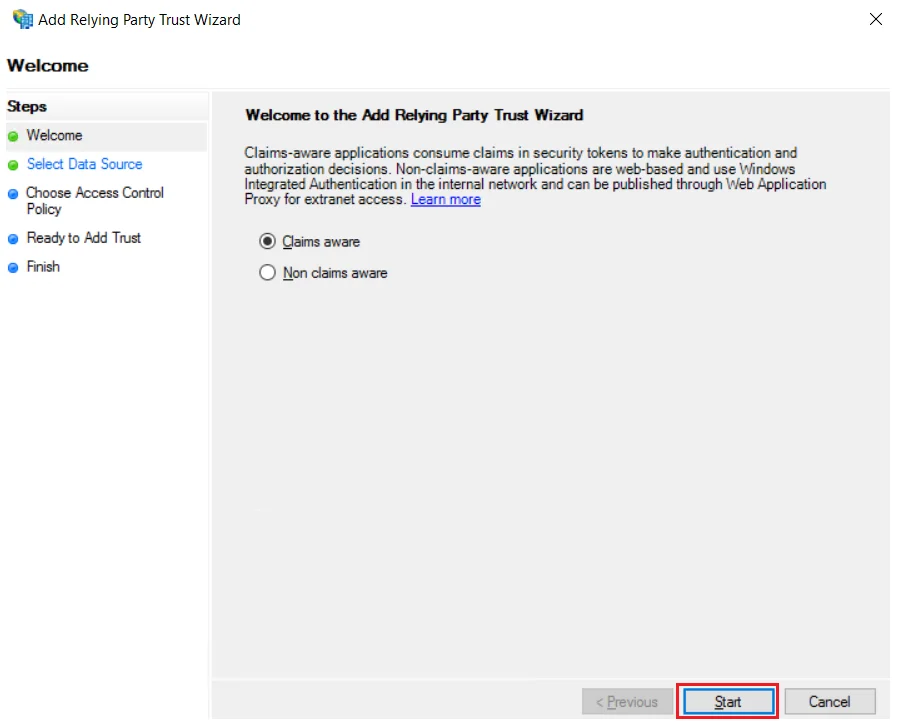

• Click the Start button from the Relying Party Trust Wizard pop up. But before that please make sure Claims Aware is selected.



• Select the options for adding a relying party trust.

Using Metadata URL

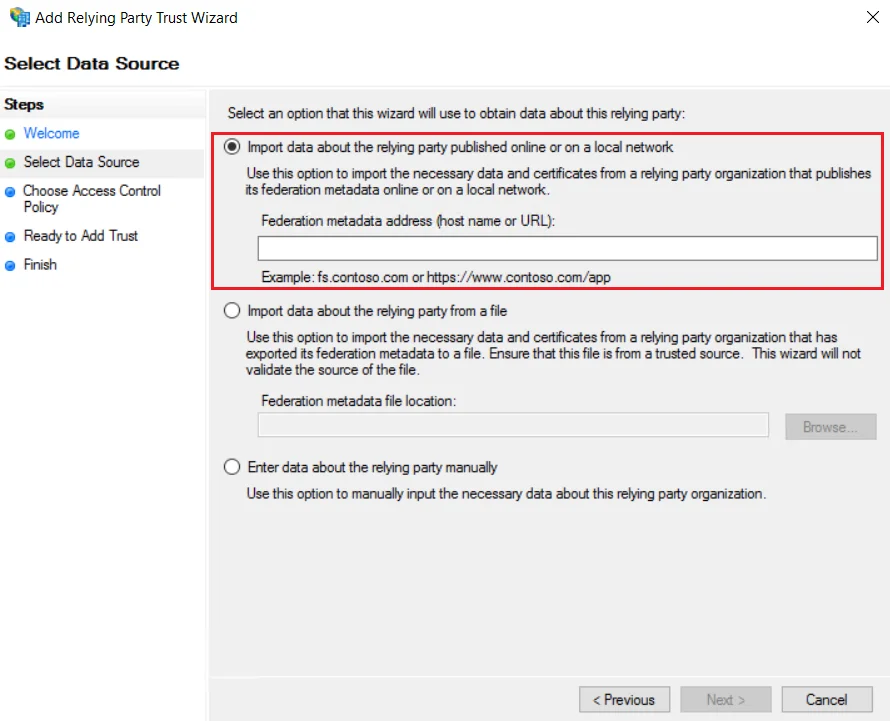

• In Select Data Source: Import data about the relying party published online or on the local network option & then add URL in Federation metadata address.



• Skip step-5 to step-8 & start configuring from step-9. Navigate to Service Provider Info tab from the plugin for getting SP Meatadata URL.

Using Metadata XML file

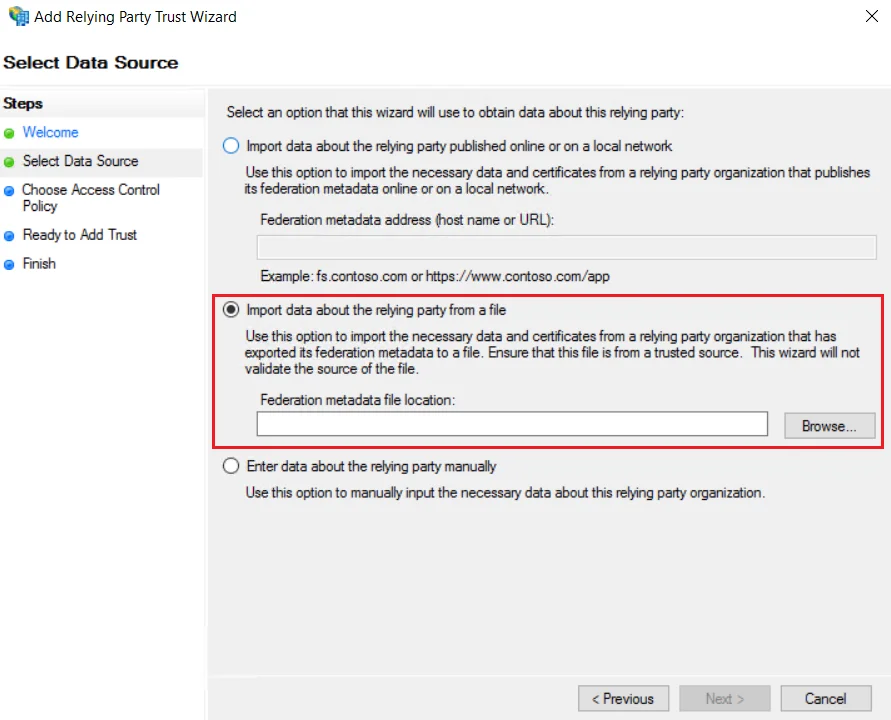

• In Select Data Source: Import data about the relying party from a file option & then browse the metadata file.



• Skip step-5 to step-8 & start configuring from step-9.

Using Manual Configuration

• In Select Data Source: Enter Data about the relying party manually & Click on Next.



• Enter Display Name & Click Next.
• Upload the certificate & click next. Download the certificate from plugin & use the same certificate to upload on ADFS.

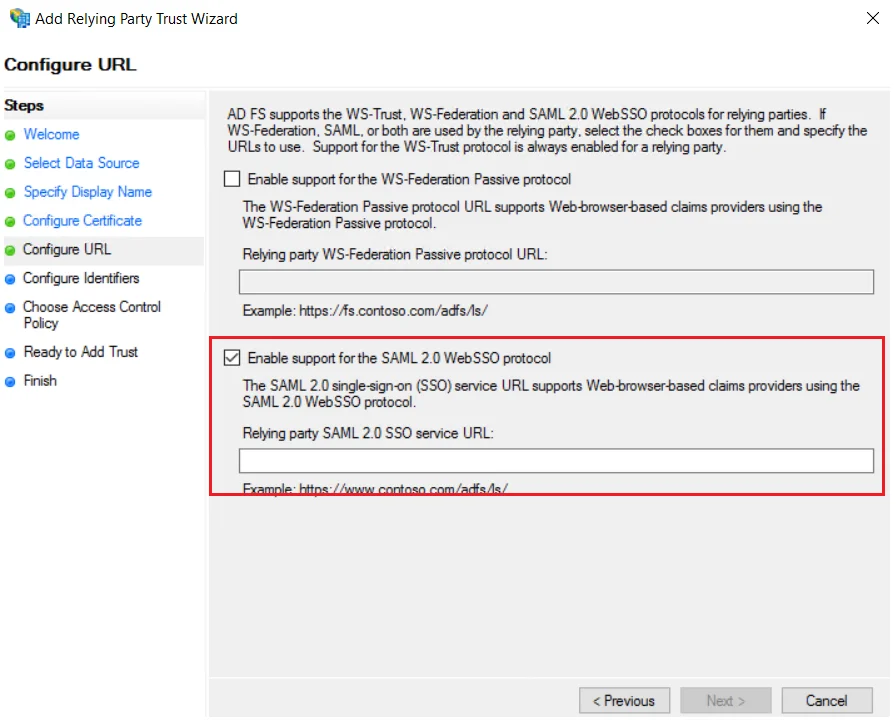

• Select Enable support for the SAML 2.0 WebSSO protocol & Enter ACS URL from the plugins Service Provider Info Tab. Click Next.

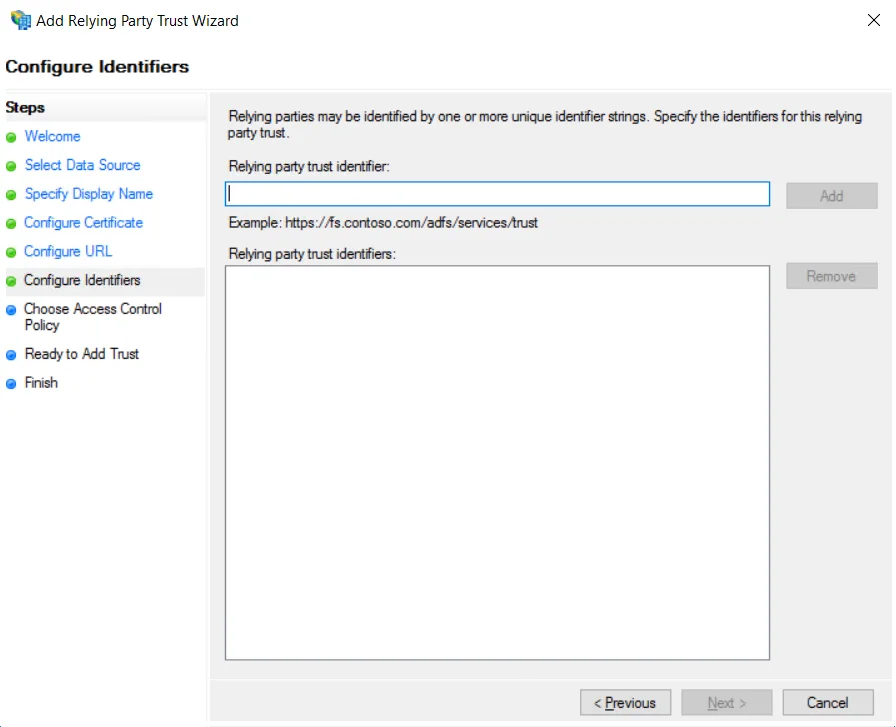

• Add Entity ID from plugins Service Provider Info Tab as Relying party trust identifier then click Add button & then click Next.



• Also download the Signing certificate from Service Provider Info Tab from the plugin.

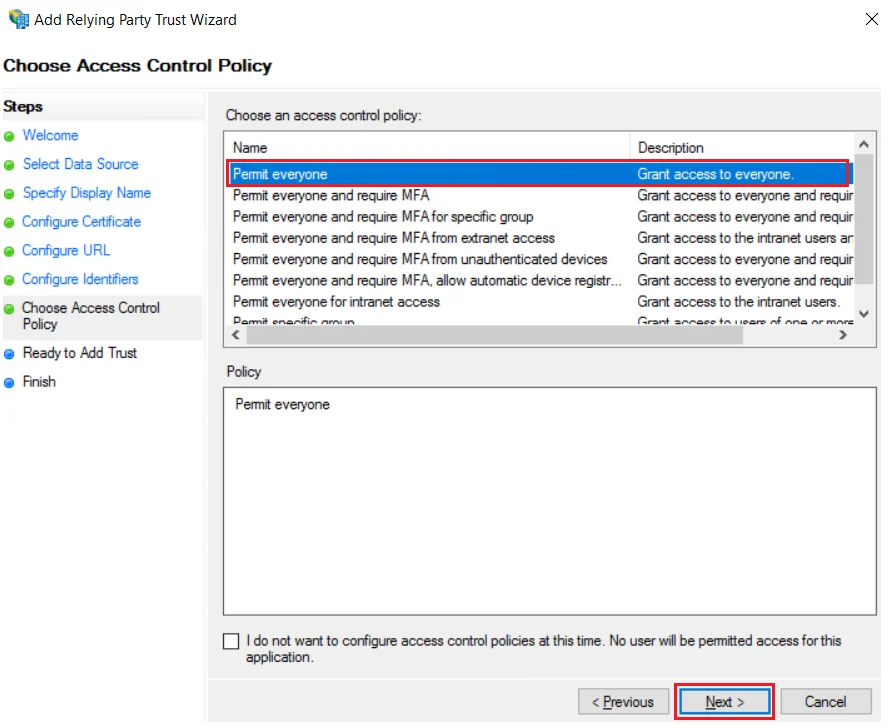

• Select Permit everyone as an Access Control Policy & click on Next.



• Click the Next button from Ready to Add Trust & click Close.

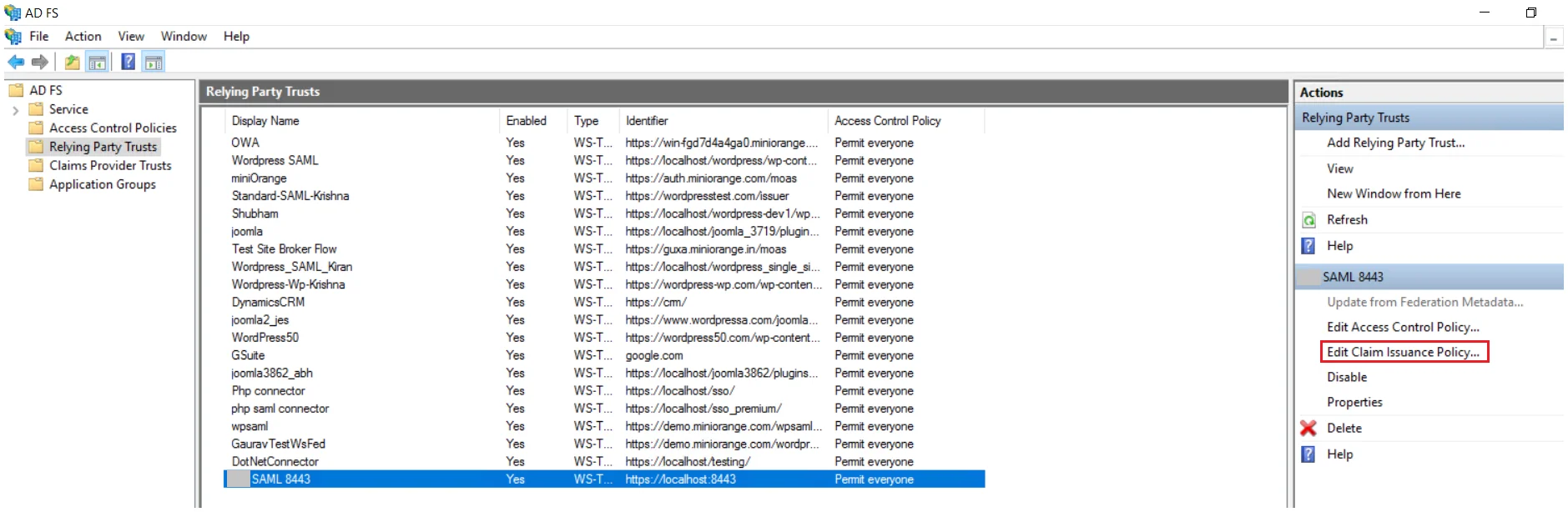

• It will show you the list of Relying Party Trusts. Select the respective application & click on Edit Claim Issuance Policy.

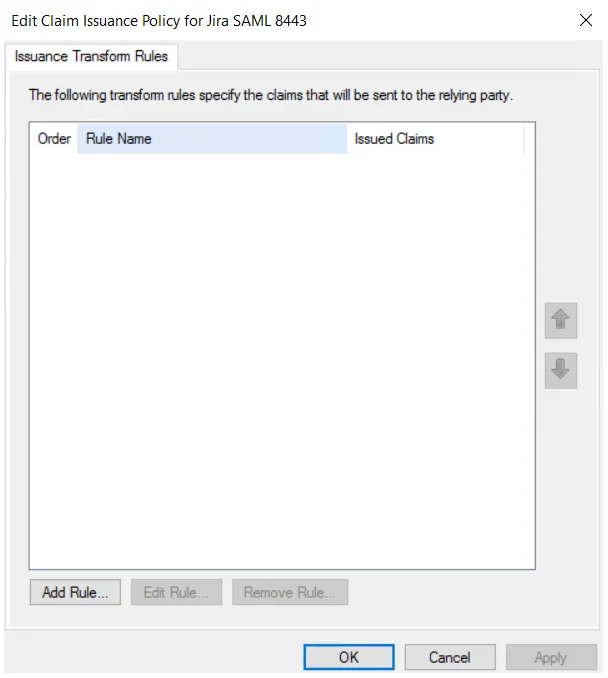

• Click on Add Rule button.

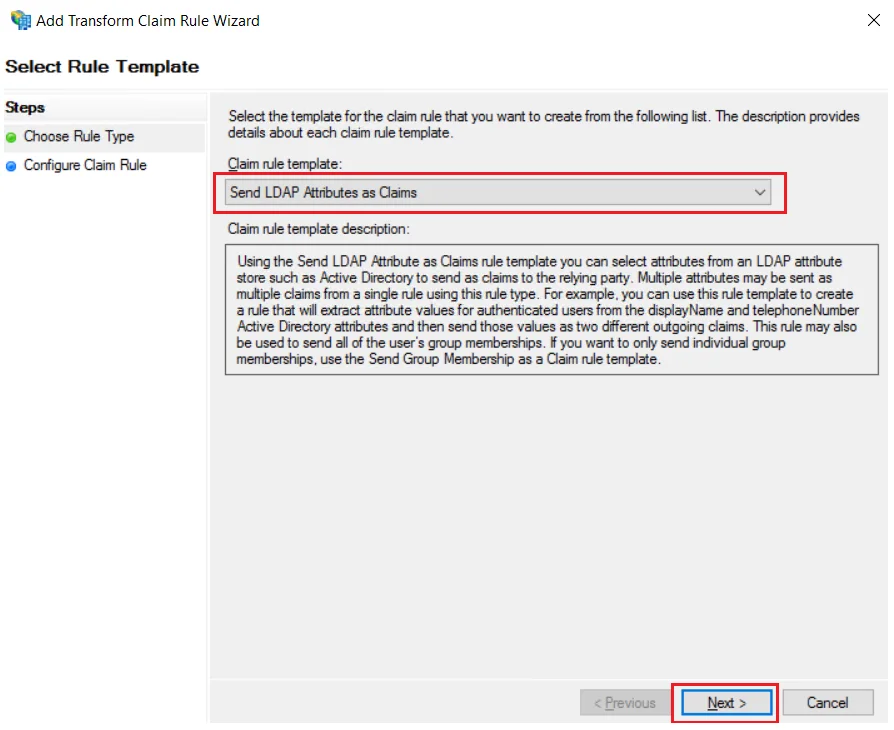

• Select Send LDAP Attributes as Claims & click on Next.

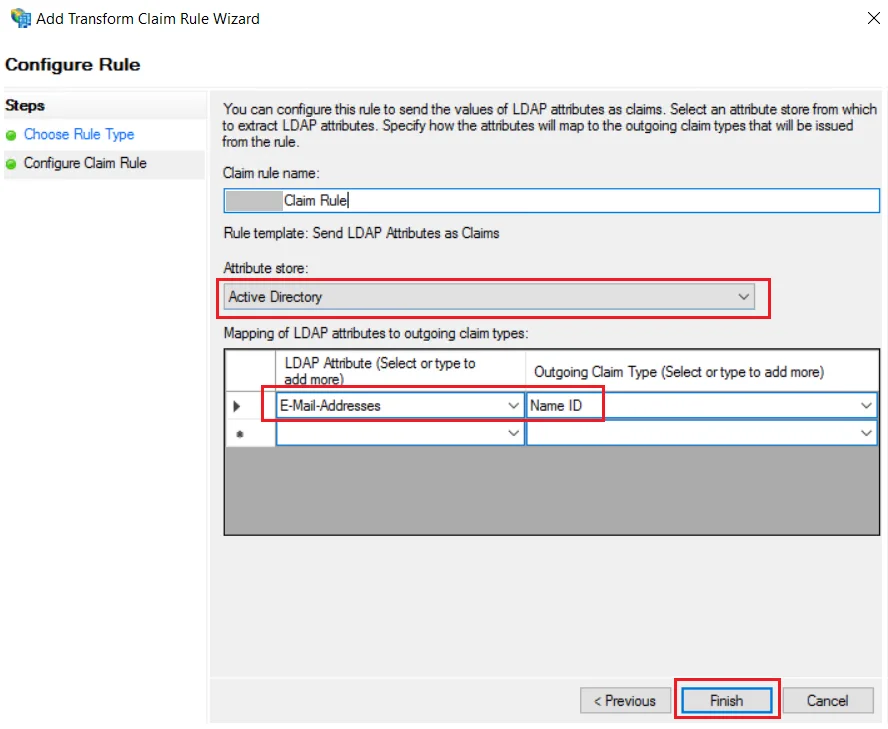

• Enter the following details & click on Finish.

Claim rule name:	Attributes
Attribute Store:	Active Directory
LDAP Attribute:	E-Mail-Addresses
Outgoing Claim Type:	Name ID




• Click Apply Ok.

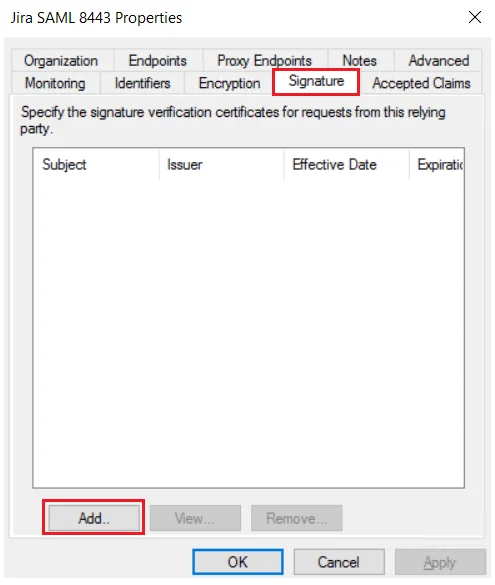

• Select property of the application & add the certificate downloaded from the add-on.

2.Configure ADFS as a SAML Identity Provider in the miniOrange Broker Agent

• Go to miniOrange Admin Console.

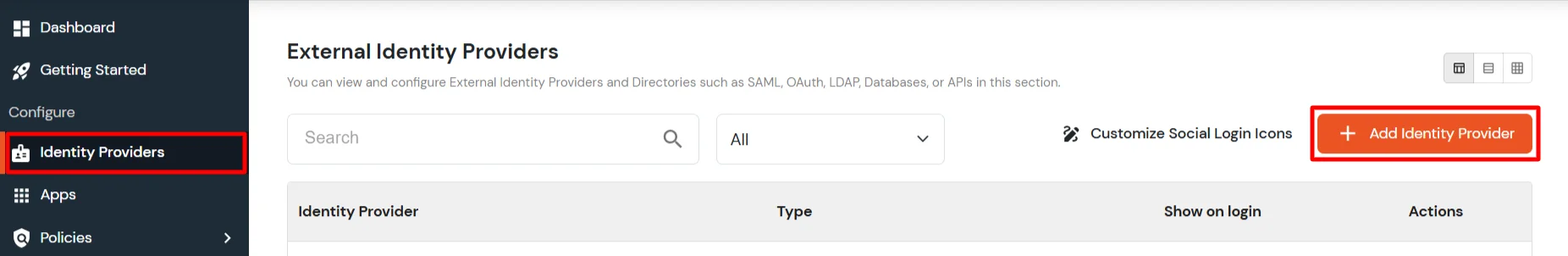

• From the left navigation bar select Identity Provider and click on Add Identity Provider button.

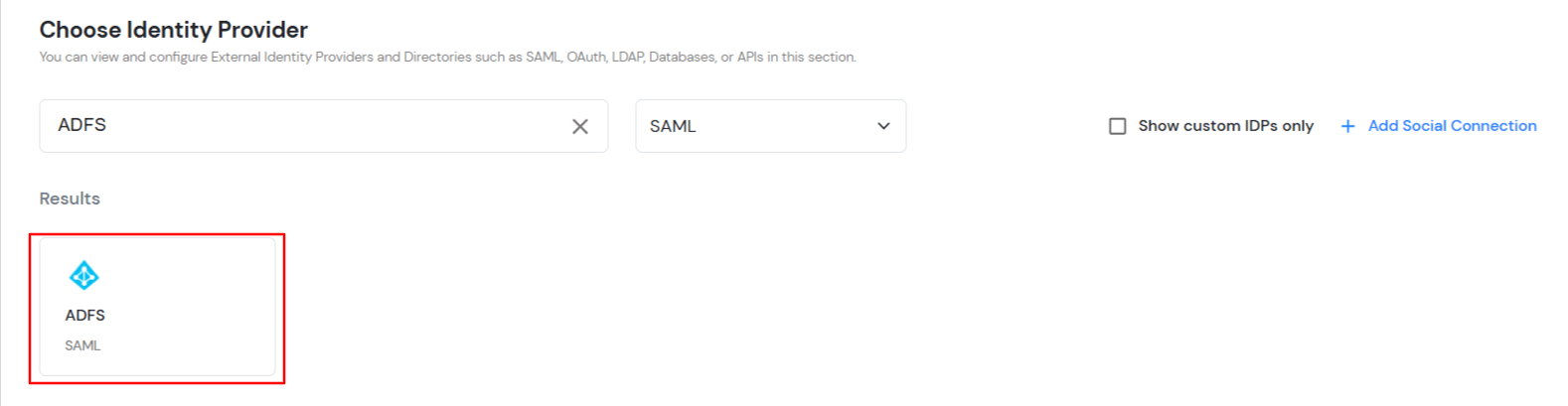

• Select SAML. Click on Import IDP metadata button.

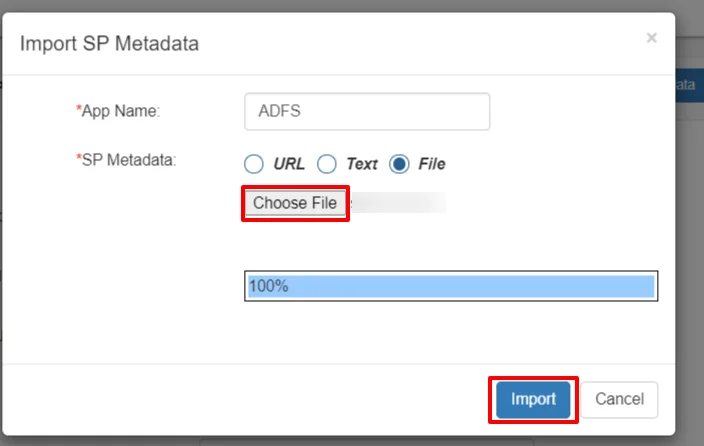

• Enter ADFS as IDP name and Click on Import button.



• As shown in the below screen the IDP Entity ID, SAML SSO Login URL and x.509 Certificate will be auto filled from the file imported.

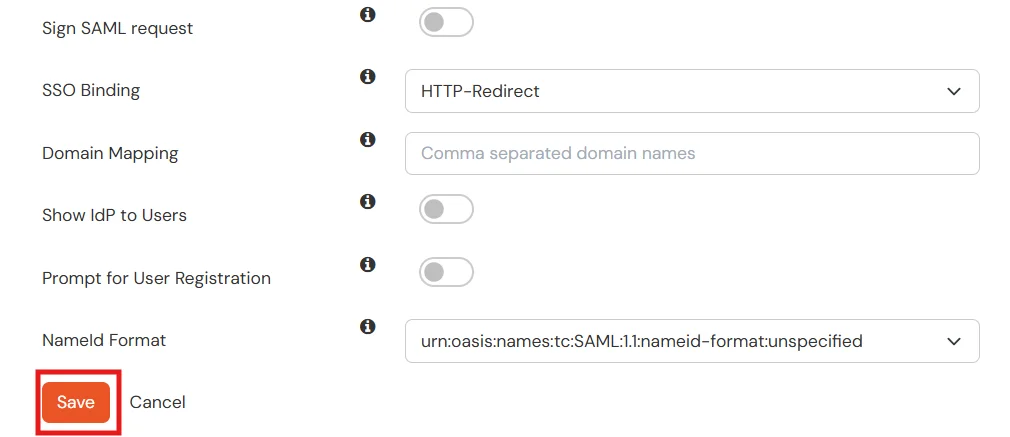

• Click on Save.



• Few other optional features that can be added to the ADFS Identity Provider(IDP) are listed in the table below:

Domain Mapping	Can be used to redirect specific domain user to specific IDP
Show IdP to Users	Enable this if you want to show this IDP to all users during Login
Send Configured Attributes	Enabling this would allow you to add attributes to be sent from IDP

• Go to Identity Providers tab.
• Click on Select>>Test Connection option against the Identity Provider you configured.



• On entering valid ADFS credentials you will see a pop-up window which as shown in below screen.



• Hence your configuration of Oracle EBS SSO in miniOrange is sucesssfully completed.

3. Configure miniOrange Broker Agent in miniOrange EBS Connector

• Add the miniOrange EBS SSO Connector as an OpenID Connect application in the Broker Agent
• Log in as a customer from the Admin Console.
• Go to Apps. Click Add Application button at right corner of your screen.



• In Choose Application Type click on Create App button in OAUTH/OIDC application type.

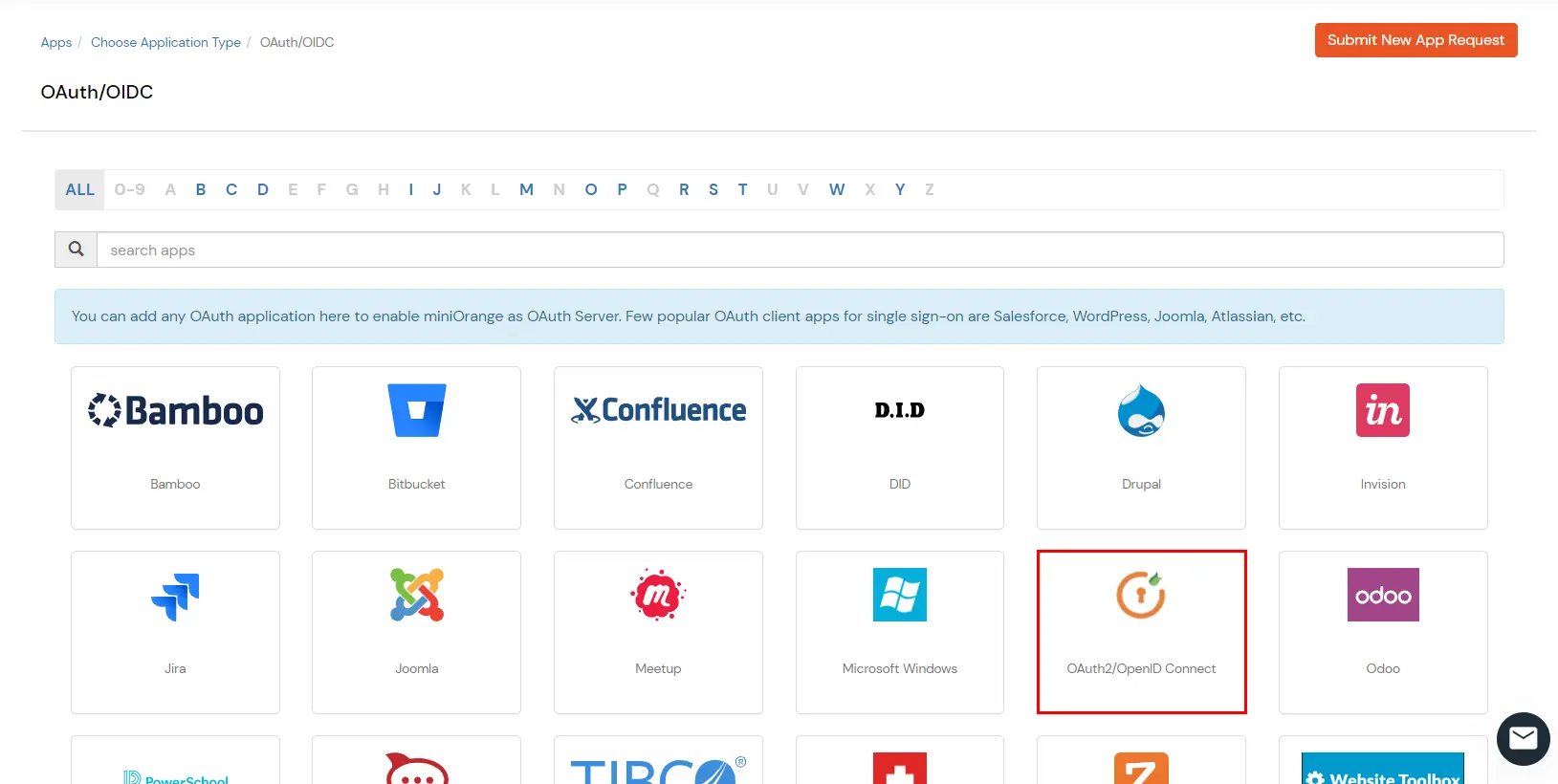

• Click on the 'OAuth2/OpenID Connect’ App Type

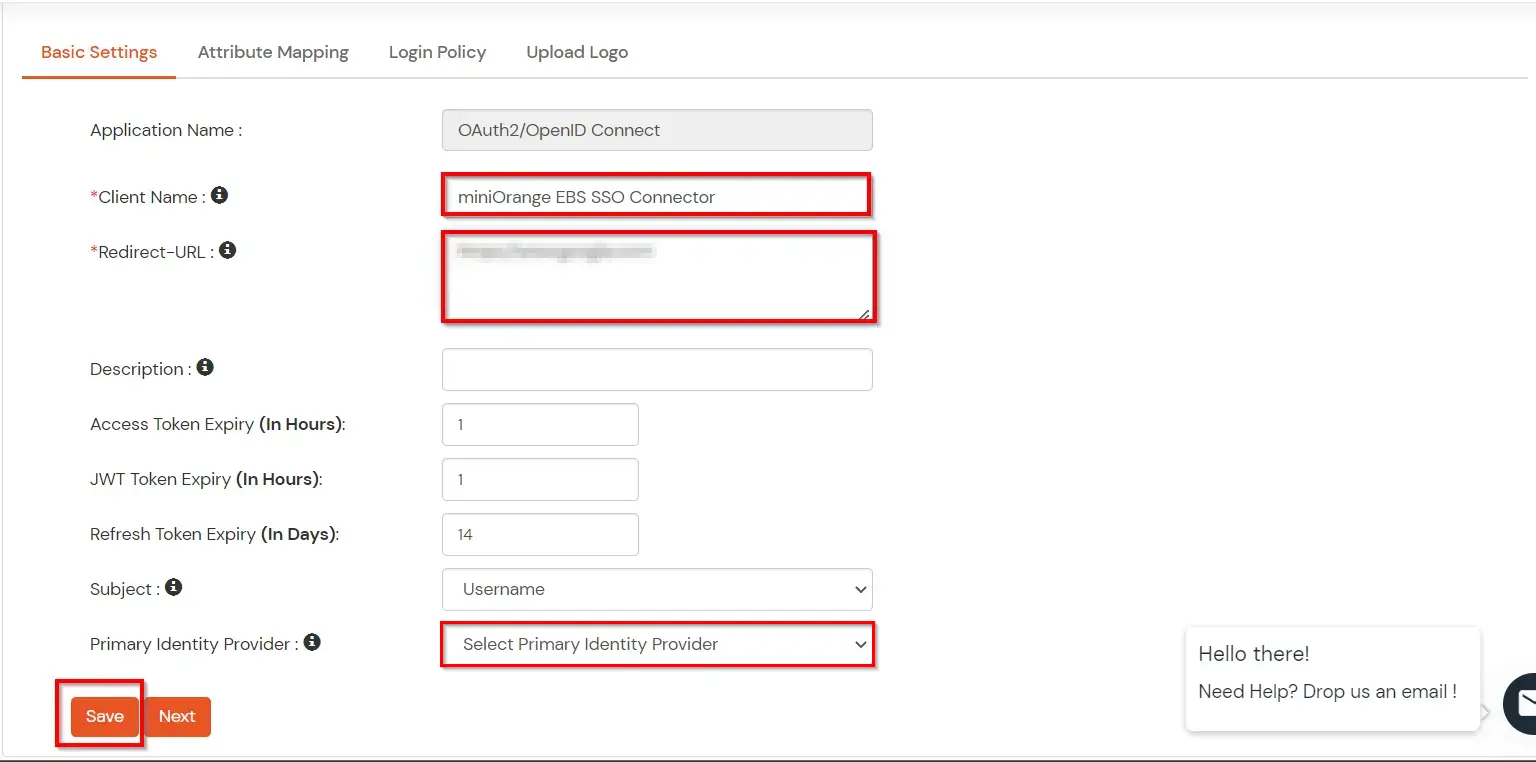

• Enter the Redirect URL for the miniOrange EBS SSO Connector. For example, https://ebsauth.example.com/ebsauth/redirect
• Select the Group Name from dropdown & enter Policy Name (Optional).
• Select Password as your login method. You can also opt for 2-factor authentication.
• Scroll down and click on the “Save Button”.



• The miniOrange EBS SSO Connector is now successfully configured with the Broker Agent.

You can edit Application by using the following steps:

• Go to Apps >> Manage Apps.

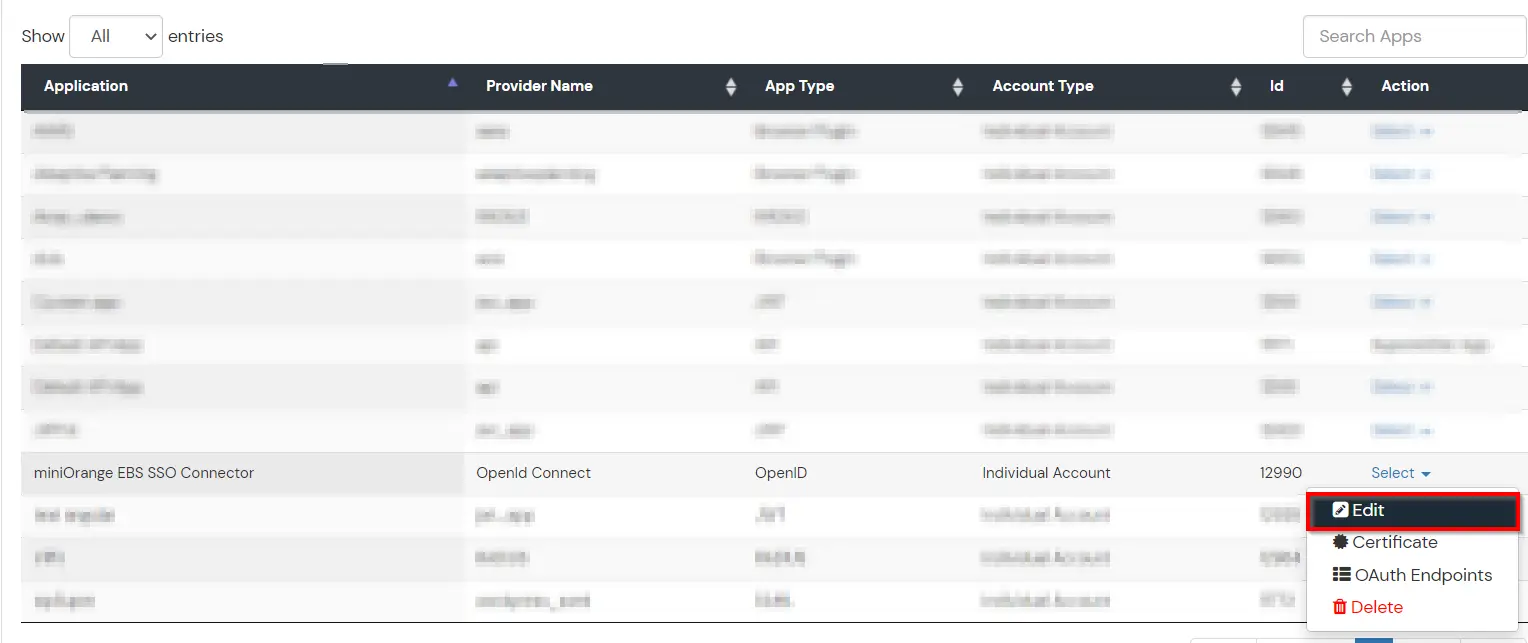

• Search for your app and Click on the edit in action menu against your app.

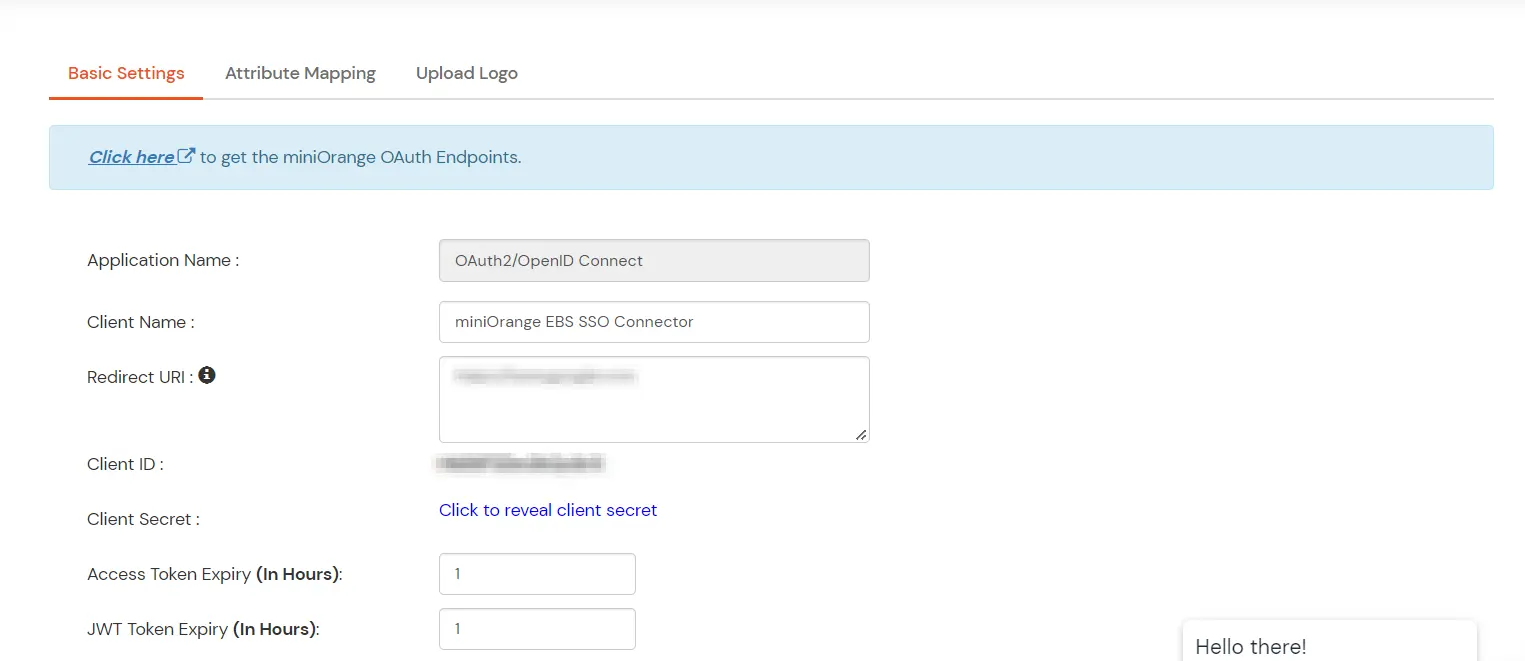

• Note down Client id and Client secret, you will need this info for configuring the miniOrange EBS SSO connector.



• Open the miniOrange EBS SSO Connector connector.properties file located under /webapps/ebsauth/WEB-INF/classes for editing.
• Set the miniorange.base.url property to the base URL of your miniOrange tenant. For Cloud version, this is the base URL: https://.xecurify.com/moas For On-Premise version, this is the base URL: https://fqdn-of-onpremise-server
• Set the customer.id property to the customer ID of your Broker Agent (found under product settings).
• Set the 'authentication.source' and property to ‘external’.
• Set the value of the redirect.uri property to the FQDN of your EBS connector, with /redirect appended to it For example, https://ebsauth.example.com/ebsauth/redirect
• Set the client.id & client.secret properties to the values from the miniOrange Broker Agent OIDC application
• Set the value of the identity.attribute property to either ‘username’ or ‘email’, depending on whether you want to log into Oracle EBS using your EBS username or your EBS email. Note that email should be unique in Oracle EBS in case you set this property to ‘email’.
• Set the value of the username.attribute & email.attribute to the name of the attributes sent from ADFS, that contain the user’s Oracle EBS username & email respectively. Leave email.attribute blank in case you set the identity.attribute property to ‘username’
• miniOrange Broker Agent is now configured with the miniOrange EBS SSO connector.

4. Configure Oracle EBS with miniOrange SSO Connector

• Set aside a sub-domain for the miniOrange EBS SSO connector on the same domain as the EBS installation. For example, if the EBS installation has the FQDN apps.example.com, then miniOrange EBS SSO connector could be installed on the sub-domain ebsauth.example.com.
• Create a new user, and assign them the role with code: UMX|APPS_SCHEMA_CONNECT. Make a note of the credentials for this user.
• Navigate to Functional Administrator → Core Services → Profiles, and make the following changes:
• Search for the Profile with code APPS_SSO; change its site value from SSWA to SSWA w/SSO.
• Search for the Profile with the code APPS_AUTH_AGENT; change its site value to the full URL (FQDN) of the miniOrange EBS SSO connector (e.g. http://ebsauth.example.com/ebsauth).
• Search for the Profile with the name Oracle Applications Session Cookie Domain; change its value from Host to Domain.
• Bounce the Application Tier of the E-Business Suite to reflect the changes.
• Generate a DBC file with the miniOrange EBS SSO connector domain (e.g. ebsauth.example.com) using the AdminDesktop utility in EBS; make a note of the APPL_SERVER_ID value present in this newly generated file.
• Update the connector.properties file in your miniOrange EBS SSO connector to reflect the credentials for the user created, the path of the DBC file & the APPL_SERVER_ID and the endpoint URLs from the above points.
