Enable IP Restriction for Google Workspace (G Suite)

---

miniOrange allows you to use IP Restriction policy to provide or deny access to the users based on trusted IP Addresses.

• For the IP Restriction to work, the Admin must create a policy specifying permitted IP addresses which allows the access to the application.
• Miniorange supports IP addresses range in three formats i.e. IPv4, IPv4 CIDR and IPv6 CIDR.
• To block the access, Admin must specify an action which needs to be performed when a user tries to login from a non trusted IP address (Such as Deny or Challenge the user with 2FA).
• Once the restriction policy is configured, it can be applied to any application’s login policy to enable IP restriction for that application

Follow the step-by-step guide given below to configure IP Restriction for Google Workspace (G Suite)

1. Configure Google Workspace (G Suite) in miniOrange

• Log into miniOrange Admin Console.
• Go to Apps and click on Add Applicaton button.



• In Choose Application Type click on Create App button in SAML/WS-FED application type.



• Search for the Google in the list.



• Enter your Domain name that you uses with the Google Workspace.
• Enter the Single Logout URL as https://mail.google.com/a/out/tld/?logout.
• From the Provisioning tab, enter the Domain Administrator in Google Apps (G Suite) Administrator field and click on "Verify Google Apps Administrator" to verify if the domain entered is of administrator (this is an optional field).



• Click on Save.

Get IdP Metadata Details to upload to Google Apps:

• Go to Apps >> Manage Apps.
• Search for your app and click on the select in action menu against your app.
• Click on Metadata to get metadata details, which will be required later. Click on Show SSO Link to see the IDP initiated SSO link for Google Apps.



• Here you will see 2 options, if you are setting up miniOrange as IDP copy the metadata details related to miniOrange, if you required to be authenticated via external IDP's (OKTA, AZURE AD, ADFS, ONELOGIN, GOOGLE APPS) you can get metadata from the 2nd Section as shown below.



• Keep SAML Login URL and click on the Download Certificate button to download certificate which you will require in Step 2.

2. Configure SAML SSO in Google Workspace (G Suite)

• Now login to Google Admin Console and Select Security Tab from Admin Console.
• Go to Authentication >> SSO with third-party IDP. Here, from the SSO profile for your organization section, click on the edit icon.





• Enable the Setup SSO with third party identity provider checkbox.
• Enter Sign-In Page URL: SAML Login URL from Step 1.
• Enter Sign-Out Page URL: < Base Server Url > /idp/oidc/logout?post_logout_redirect_uri=https://gmail.com
  Example: https://login.xecurify.com/moas/idp/oidc/logout?post_logout_redirect_uri=https://gmail.com

• Upload the certificate by clicking on Replace Certificate link that was downloaded earlier in Step 1.
• Enter Change Password URL: SAML Login URL from Step 1.
• Save the settings.
• Your Google SSO SAML integration is done.



2.1. Assign SSO profile to organizational units or groups:




If you want some of your users to sign in to Google directly, you can move those users into an organizational unit (OU) or group. Then, manage SSO settings for the OU or group so that those users are authenticated by Google rather than using your third-party IdP. Follow the following steps:

• If you want all your (non-super admin) users to sign in using a third-party IdP : You don't need to manage.
• If you want some of your users to sign in to Google directly : Click Manage SSO profile assignments and continue to the next step.
  • If you are assigning the SSO profile for the first time, then click Get started. Otherwise, click Manage. Note: Get started is only available if you’ve already enabled your third-party SSO profile.




  • Select the organizational unit or group for which you’re assigning the SSO profile from the left .
    Note: If the SSO profile assignment for an OU or group differs from your domain-wide profile assignment,
an override warning appears when you select that OU or group. You can’t assign the SSO profile on a
per-user basis. The Users view let you check the setting for a specific user.




  • Choose Organization's third Party SSO Profile if you want your users in the OU or group to sign in to Google services using the IdP designated in your domain’s third-party SSO profile.
  • Choose None if you want your users in the OU or group to sign in directly with Google.
  • Choose Another SSO profile in case you already have another Identity Provider configured and would like to use it for user authentication.
  • Then click Save.

2.2. To turn SSO off for all users:

If you want to turn off the third-party authentication for all your users without changing the SSO profile assignment for OUs or groups, you can disable the third-party SSO profile:

• Uncheck Set up SSO with third-party identity provider.
• Click Save.

3. Configure IP Restriction: Restricting access with IP Blocking

You can allow an IP Address in a certain range for SSO or you can deny it based on your requirements and you can also challenge the user to verify their authenticity. Adaptive authentication manages the user authentication based on different factors such as Device ID, Location, Time of Access, IP Address, and many more, thus improving the security and functionality of Single Sign-On.

You can configure Adaptive Authentication with IP Blocking in the following way:

• Go to Adaptive Authentication from the left navigation bar.
• Click on Add Policy tab.



• Add a Policy Name for your Adaptive Authentication Policy.

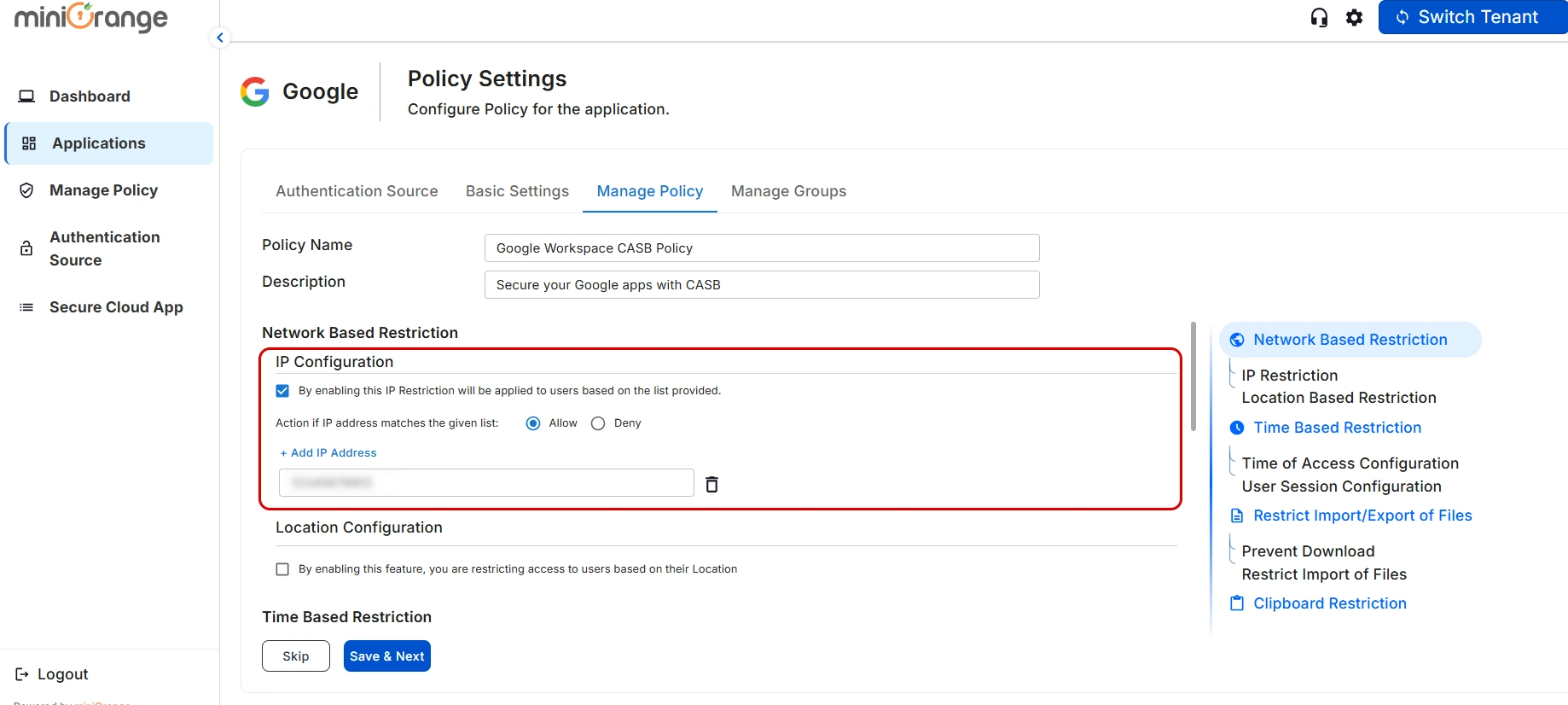

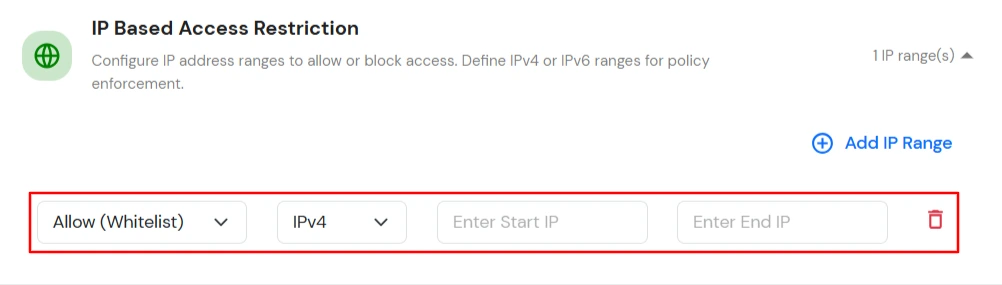

• Click on Edit in the IP Config section to configure the custom IP range. You can add more than one IP Address ranges by clicking on the Add IP button.



• We support IP addresses range in three formats i.e. IPv4, IPv4 CIDR and IPv6 CIDR. You can choose whichever is suitable for you from the dropdown menu.



• Now, scroll down to the Action For Behaviour Change section and click on Edit. Select the action you want to perform if the IP address is out of the range. i.e. Allow, Challenge or Deny.




Action for behavior Change Options :




Attribute	Description
Allow	Allow user to authenticate and use services if Adaptive authentication condition is true.
Challenge	Challenge users with one of the three methods mentioned below for verifying user authenticity.
Deny	Deny user authentications and access to services if Adaptive authentication condition is true.




Challenge Type Options :




Attribute	Description
User second Factor	The User needs to authenticate using the second factor he has opted or assigned for such as OTP over SMS PUSH Notification OTP over Email And 12 more methods.
KBA (Knowledge-based authentication)	The System will ask user for 2 of 3 questions he has configured in his Self Service Console. Only after right answer to both questions user is allowed to proceed further.
OTP over Alternate Email	User will receive a OTP on the alternate email he has configured threw Self Service Console. Once user provides the correct OTP he is allowed to proceed further.



• Scroll to the end and click on save.

4. Enable Restriction for Google Workspace (G Suite)

• Go to Policies >> App Login Policy from the left navigation bar.
• Click on Edit option against your selected app.



• Set your application name in the Application and select password as Login Method.
• Enable Adaptive Authentication.
• From the Select Login Policy dropdown, select the policy we created in the last step and select the required restriction method as an option.
• Click Save.

5. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.

• Setup miniOrange as IDP
• Setup AD as User Directory
• Setup External IDP

• To add your users in miniOrange there are 2 ways:

1. Create User in miniOrange

2. Bulk Upload Users

1. Create User in miniOrange

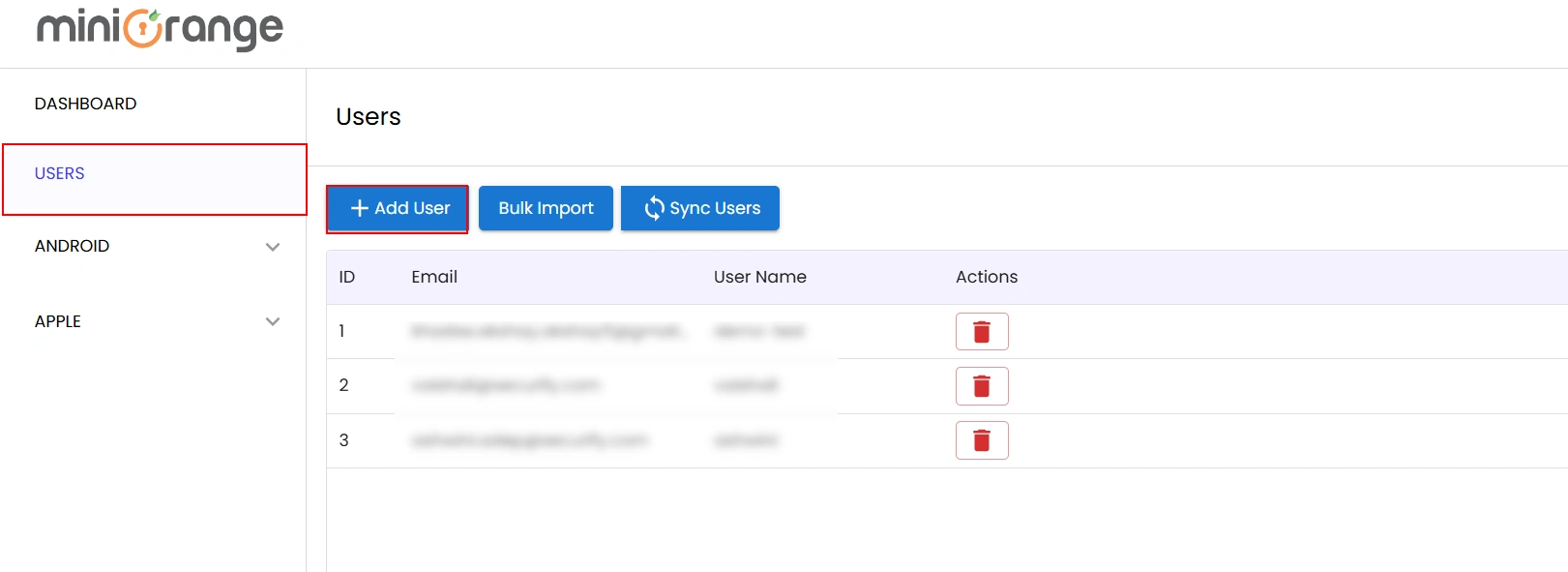

• Click on Users >> User List >> Add User.



• Here, fill the user details without the password and then click on the Create User button.



• After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.



• Click on Onboarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.



• Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
• On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.



• Now, you can log in into miniOrange account by entering your credentials.

2. Bulk Upload Users in miniOrange via Uploading CSV File.

• Navigate to Users >> User List. Click on Add User button.



• In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.



• To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.



• After uploading the csv file successfully, you will see a success message with a link.
• Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.

• Click on External Directories >> Add Directory in the left menu of the dashboard.



• Select Directory type as AD/LDAP.



1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.




• Enter LDAP Display Name and LDAP Identifier name.
• Select Directory Type as Active Directory.
• Enter the LDAP Server URL or IP Address against LDAP Server URL field.
• Click on Test Connection button to verify if you have made a successful connection with your LDAP server.



• In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.



• Enter the valid Bind account Password.
• Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.



• Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.



• Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.



• You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.




Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

Attribute	Description
Activate LDAP	All user authentications will be done with LDAP credentials if you Activate it
Sync users in miniOrange	Users will be created in miniOrange after authentication with LDAP
Fallback Authentication	If LDAP credentials fail then user will be authenticated through miniOrange
Allow users to change password	This allows your users to change their password. It updates the new credentials in your LDAP server
Enable administrator login	On enabling this, your miniOrange Administrator login authenticates using your LDAP server
Show IdP to users	If you enable this option, this IdP will be visible to users
Send Configured Attributes	If you enable this option, then only the attributes configured below will be sent in attributes at the time of login



• Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.



• On Successful connection with LDAP Server, a success message is shown.
• Click on Test Attribute Mapping.



• Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.



• After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.

Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

• Go to Settings >> Product Settings in the Customer Admin Account.



• Enable the "Enable User Auto Registration" option and click Save.



• (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.



• From the Left-Side menu of the dashboard select Provisioning.



• In Setup Provisioning tab select Active Directory in the Select Application drop-down.
• Toggle the Import Users tab, click on Save button.



• On the same section, switch to Import Users section.
• Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.



• You can view all the Users you have imports by selecting Users >> User List from Left Panel.



• All the imported users will be auto registered.
• These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

• Okta
• ADFS
• Ping
• AWS Cognito
• Many more

Not able to find your IdP or Need help setting it up?

Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.
